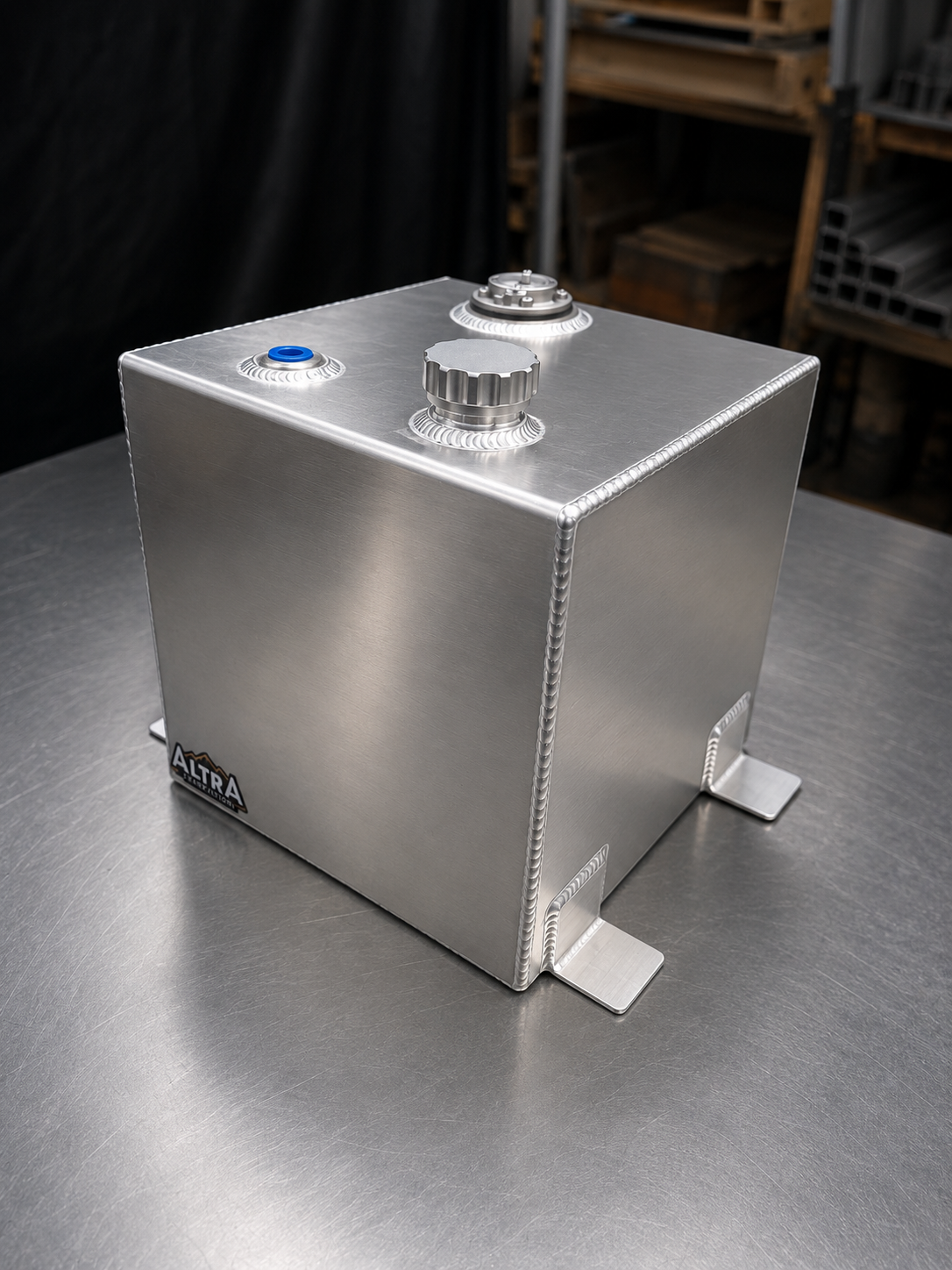

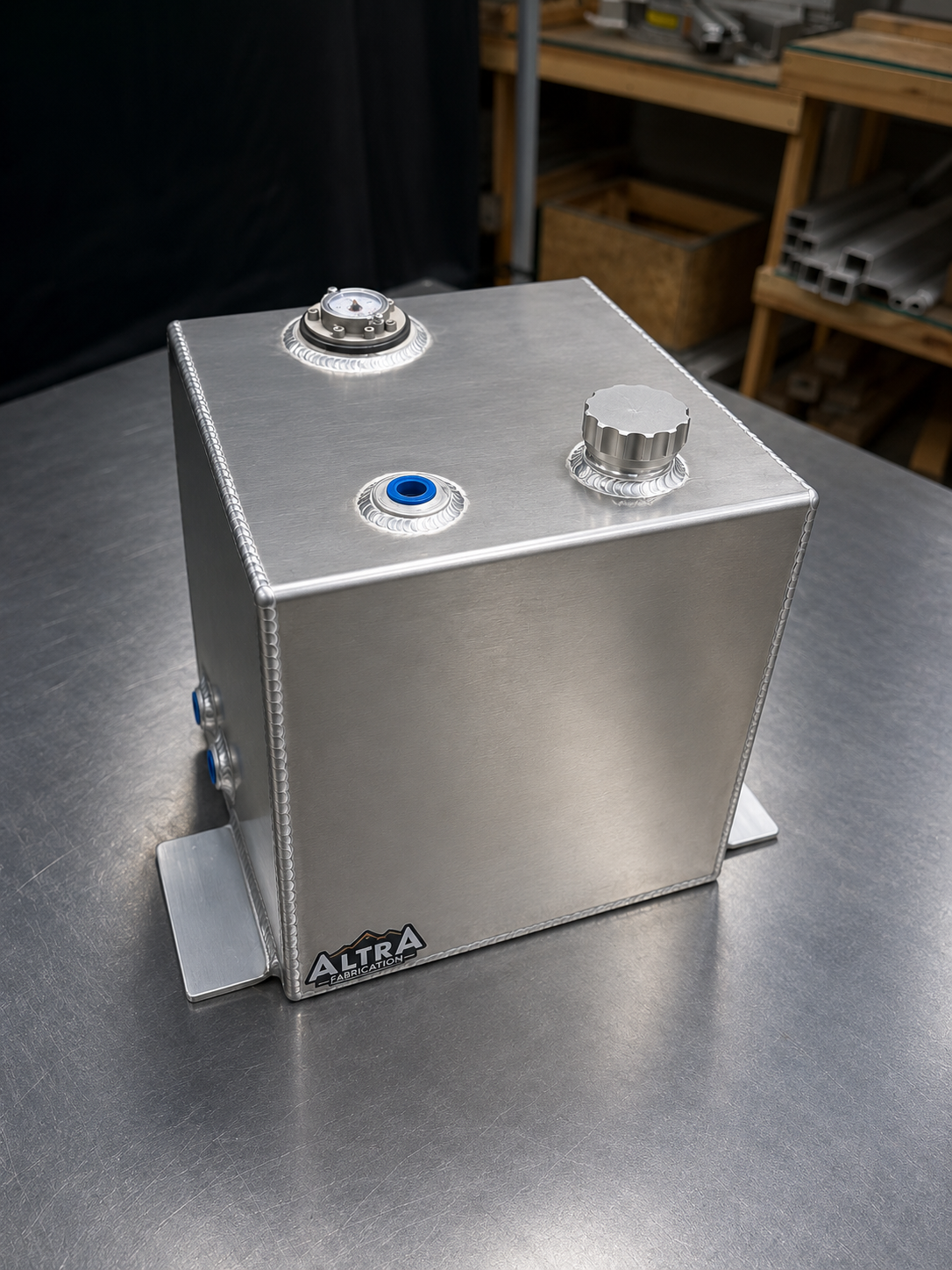

7 Gallon Aluminum Fuel Tank | 12" x 12" x 12"

This 7-gallon fuel tank pairs a compact 12" x 12" x 12" footprint with marine-grade 5052 aluminum construction. Welded fittings and mounting tabs provide defined connection and mounting points for your build.

Specifications

• Capacity: 7 gallons
• Dimensions: 12" x 12" x 12"
• Material: marine-grade 5052 aluminum
• Vent connection: welded 3/8" NPT fitting on top
• Fuel delivery connections: two welded 1/4" NPT fittings on the side
• Fill: 1.5" billet aluminum fill
• Mounting: welded 1/8" angle tabs

Optional sending unit flange and mechanical fuel gauge available for an additional $120.
